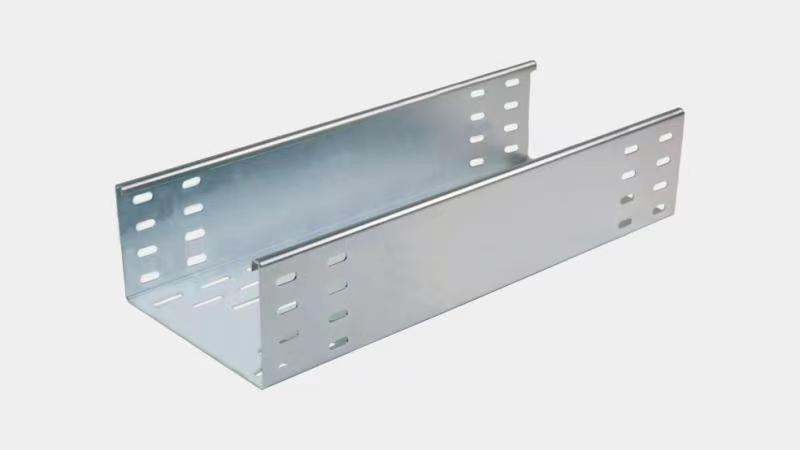

The cable tray has connector perforations on both sides. Straight connectors should be ordered separately and in the appropriate quantity. Heavy-duty, walkable cable tray system WACS with base perforation,in 110 mm side height
Rugged connection

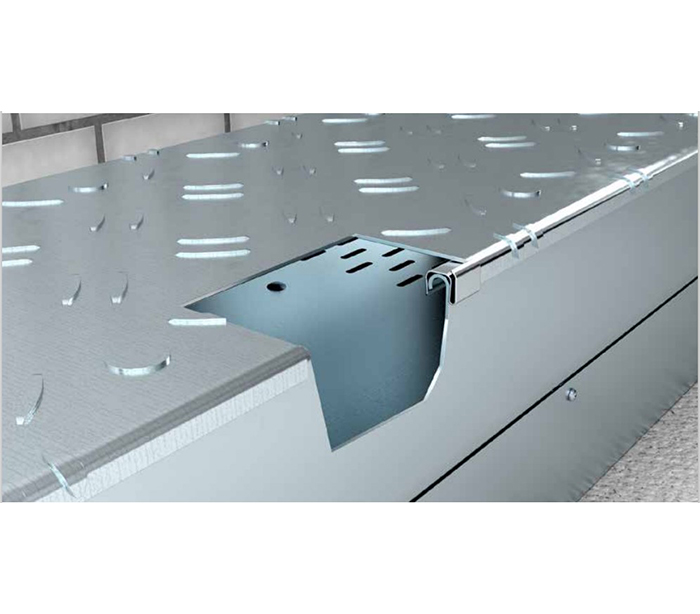

Heavy loads, stamping feet, dirt, dust – enclosed, walkable cable tray systems can handle all this and more,thanks to their ingenious system design. With their excellent mechanical stability, they offer effective protection for cables and lines. They all provide optimal shielding to ensure electromagnetic compatibility.
Comprehensive accessories

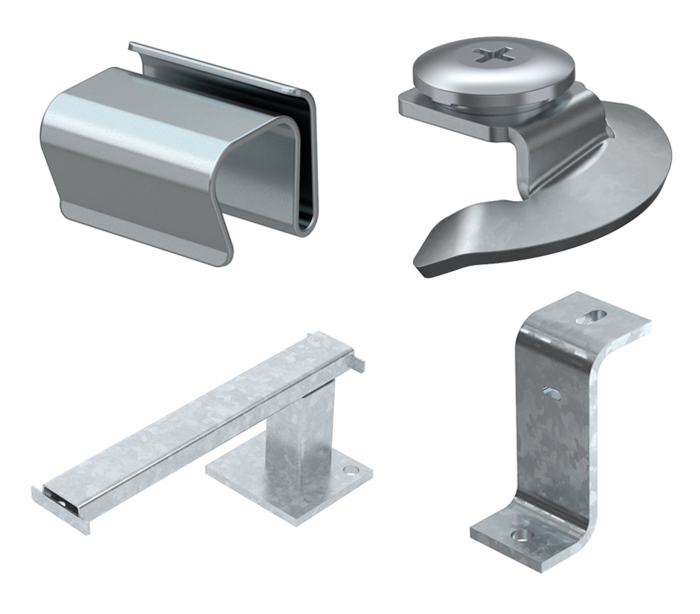

No matter whether a cover clamp as an alternative to the turn buckle, a cover lifter with a clever drilling template, a universal connector with inclusive edge protection or stand-offs for different mounting variants - the comprehensive accessories make the WACS cable tray even better.
Continuously protected
Rapid, screwless integration of the BKR system into the functional equipotential bonding
with KFL clamp spring and CTD connection terminal.

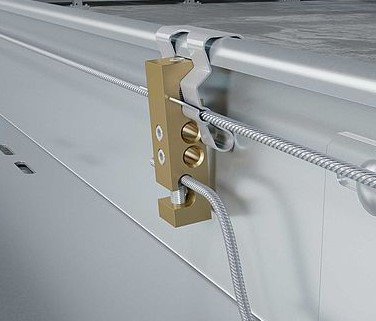

KFL clamp spring
• Just clamp onto the cable tray rail without needing to drill
• The conductor rope is pushed into the clamp spring to create the contact
• Max. conductor rope cross-section 35 mm²
Connection terminal CTD
• Simple creation of branches and exits of the conductor rope
• Available in single and double versions
Functional equipotential bonding
The clamp spring and the connection terminal provide continuous functional equipotential bonding, without any additional drilling.

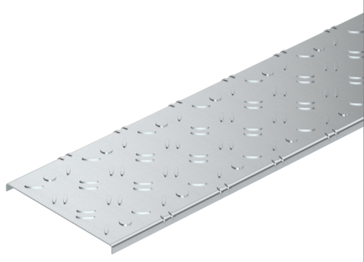

Anti-slip and displacement area

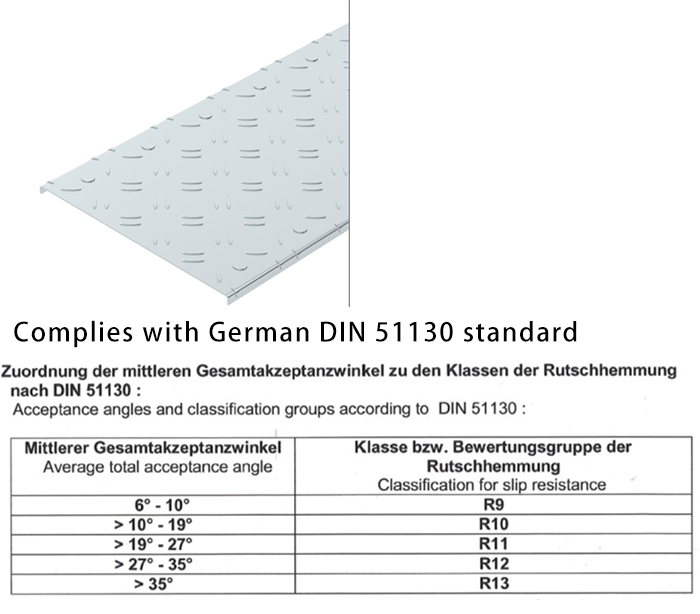

Sure-footed and slip-free with tested anti-slip (R11) and displacement area (V10) according to the applicable regulations for a lower accident risk at work.
