ML ZM lighting busway is mainly used in lighting systems and electric places with small and medium-sized loads but multiple branches, such as tall buildings, hotels, shopping malls, offices, schools, hospitals, etc.

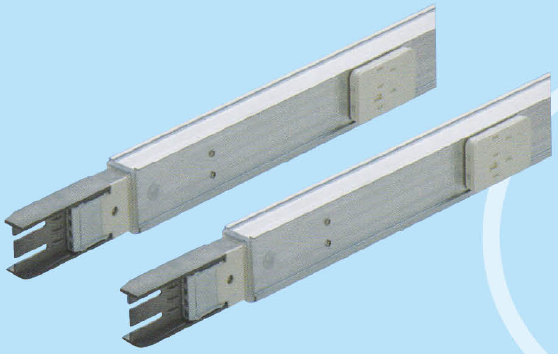

Application ML ZM lighting busway is mainly used in lighting systems and electric places with small and medium-sized loads but multiple branches, such as tall buildings, hotels, shopping malls, offices, schools, hospitals, etc. Structural characteristics 1. The outer covering of ML ZM lighting buway is made of track-type aluminum alloy profile, easy and fast to install, and nice appearance. 2. All current grade busway uses the same specification of outer covering, and standard connection terminals are used at the joints, which has good universality. 3. Using insulating components to support and divide insulated wires, safe and reliable. 4. Using universal two-hole and three-hole sockets, it is easy and fast to lead out branching power supplies; 5. The socket setting is conducive to three-phase load balancing. 6. Various on-site installation methods, and users can flexibly use them according to their needs, users can choose according to their needs. |
|
Performance
1. The outer covering of the busway is made of aluminum alloy profiles, which are lightweight, corrosion-resistant, and strong stability.
2. The profile structure is reasonable and can achieve installation with a large span of less than 2 meters. It can also be used as an installation support for small lighting equipment.
3. A socket is set every 400mm on the busway, and the plug-in box can be plugged in with electricity.
4. Building block construction with fast and reliable electrical and mechanical connector performance.
5. High protection level: IP54.
6. Flexible and easy installation.
7. Install switches or fuses in plug-in box according to requirements.
